Custom Humanoid Reducer Architectures

Name: Custom Humanoid Reducer Architectures
Brand: CustomHumanoidActuator
SKU: customhumanoidactuator-custom-humanoid-reducer-architectures
Availability: LimitedAvailability

Reducer architecture selection and custom integration support for humanoid actuators, including harmonic, cycloidal, planetary, compound, and linear transmission paths matched against joint load, backlash, impact, efficiency, noise, size, and sourcing risk.

Target Buyer:For teams that need help choosing or customizing the reducer path before committing actuator drawings, supplier qualification, and pilot tooling.

Send CAD for RFQ Review Check RFQ Baseline

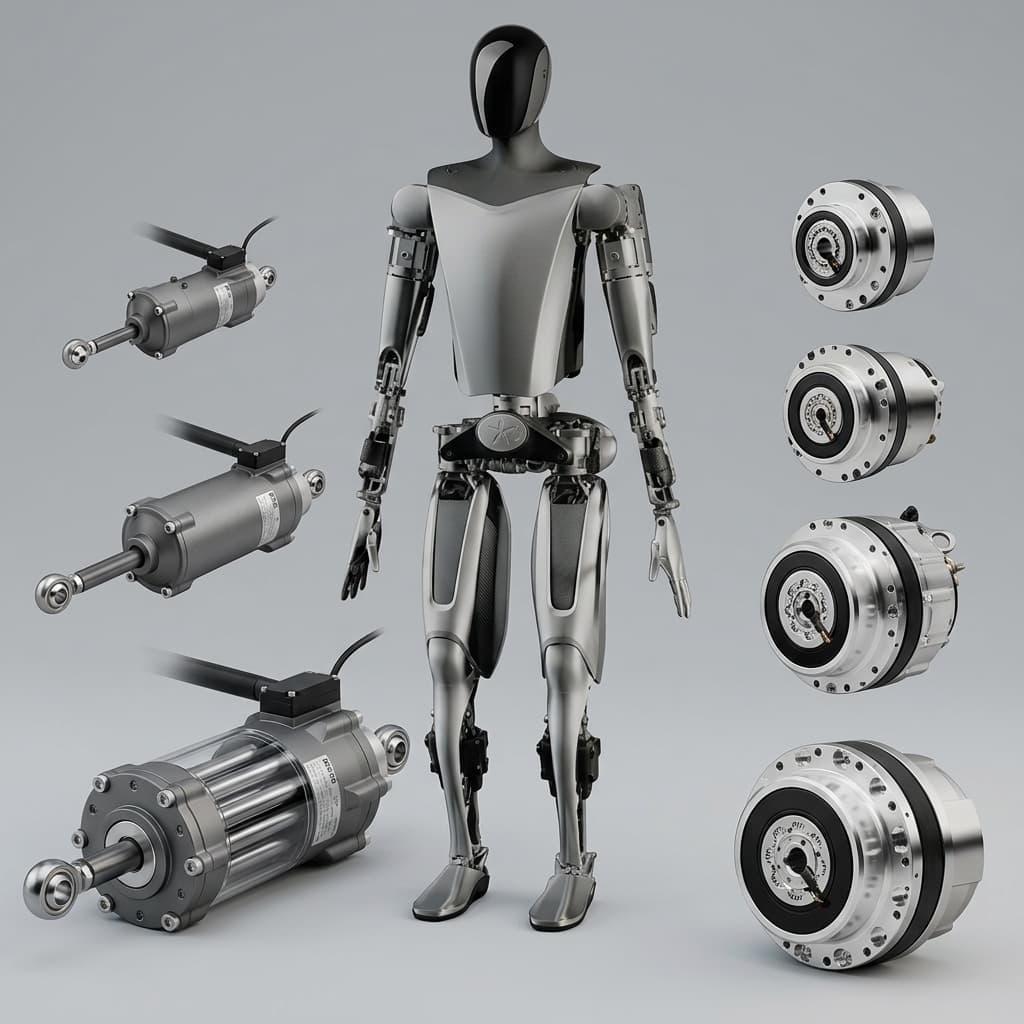

Custom humanoid actuator reducer architecture reference

Custom Program Fit, Not Standard Model Browsing

This page should help a robotics buyer decide whether this product family belongs in the RFQ path and what evidence must be attached before a prototype or pilot order is credible.

Who this fits

For teams that need help choosing or customizing the reducer path before committing actuator drawings, supplier qualification, and pilot tooling.

First engineering metric

Backlash and repeatability: Reducer type and preload dependent

Pilot risk to control

Reducer selection is based only on rated torque and misses backlash, heat, noise, or shock behavior

Capability Highlights

Reducer trade-off review for hip, knee, ankle, shoulder, elbow, wrist, waist, and hand subsystems
Architecture matching across backlash, torsional stiffness, impact load, efficiency, backdrivability, noise, and service life
Custom interface, bearing support, lubrication, sealing, inspection, and incoming-quality planning around the selected reducer path

Typical Applications

High torque humanoid leg and waist actuators
Compact arm, wrist, and hand joints with backlash sensitivity
Prototype platforms comparing harmonic, cycloidal, planetary, or custom reduction stacks

Best-Fit Buying Signals

High torque humanoid leg and waist actuators
Reducer trade-off review for hip, knee, ankle, shoulder, elbow, wrist, waist, and hand subsystems
Compare reducer options against real joint loads, shock cases, motion profile, stiffness requirement, allowable backlash, and target noise

Redirect the RFQ If

Architecture still undecided: Compare QDD, harmonic, cycloidal, planetary, linear, and hybrid reducer paths before freezing the actuator drawing.
Only the mechanical housing is in scope: Route the inquiry to precision housings, bearing seats, flanges, shafts, datum control, and inspection evidence.
No RFQ baseline exists yet: Build the first-pass package around CAD, torque-speed, duty cycle, envelope, quantities, and acceptance tests.

Engineering Focus

Compare reducer options against real joint loads, shock cases, motion profile, stiffness requirement, allowable backlash, and target noise
Define motor-reducer-bearing-output stack datums so the reducer is not evaluated separately from housing and assembly tolerance
Plan incoming inspection, backlash checks, efficiency checks, lubrication controls, and failure feedback before pilot order

Key Evaluation Matrix

Metric	Typical Range	Why It Matters
Backlash and repeatability	Reducer type and preload dependent	Humanoid balance, arm positioning, and hand control can degrade quickly when backlash is treated as a catalog number instead of an assembled-joint condition.
Shock and torsional stiffness	Joint load case dependent	Leg and waist actuators see impact and moment loads that can exceed steady torque assumptions during walking or recovery events.
Efficiency and thermal load	Ratio, lubricant, and speed dependent	A high-ratio reducer can simplify torque sizing but increase heat, noise, friction, and control losses.

Evidence to Request Before Pilot Release

Product selection is only useful when it connects to a buyer-visible evidence path. These proof gates turn the page from a capability description into an RFQ checklist.

Proof Gate	Evidence to Ask For
Drawing baseline	CAD package, controlled drawing revision, CTQ list, open trade-offs, NRE scope, and prototype/pilot responsibility.
RFQ evidence package	Buyer-side package with joint map, CAD/drawing baseline, torque-speed or force-stroke targets, validation request, pilot quantity, and report expectations.
Evidence library	Stage-by-stage map for CMM, FAI, actuator validation, electronics/FCT, traceability, NCR, packaging, and pilot release records.
Test plan checklist	Operating cycle, fixture boundary, torque-speed or force-stroke method, thermal-rise setup, backlash method, FCT, endurance, and report handoff.
Sample PO checklist	Drawing revision, CTQ acceptance limits, report deliverables, sample variants, buyer-supplied boundaries, change rules, packaging, and delivery records.
Manufacturing proof	FAI, CMM, datum checks, bearing fit, flange flatness, output runout, surface treatment, and outgoing reports.
Actuator validation	Torque-speed, thermal rise, backlash, noise, FCT, burn-in, traceability, nonconformance, and pilot release records.
BOM and sourcing control	Approved parts, restricted suppliers, substitutions, lead time, firmware boundary, harness, packaging, and second-source risk.

RFQ Checklist

Joint axis, output torque, peak shock load, speed, duty cycle, service-life target, and stiffness requirement
Backlash limit, repeatability target, backdrivability expectation, noise limit, and efficiency preference
Space envelope, bearing support plan, lubrication/sealing condition, and output interface drawing
Prototype quantity, reducer evidence needed, pilot forecast, and replacement or spare-part strategy

Risk Controls

Reducer selection is based only on rated torque and misses backlash, heat, noise, or shock behavior: Evaluate reducer architecture with torque-speed-duty data, impact cases, efficiency expectations, and assembled actuator tolerance stack.
A custom reducer package cannot be inspected consistently at pilot volume: Define incoming inspection, backlash measurement, lubrication checks, and failure-analysis records before the first pilot batch.

Prototype to Pilot Workflow

A serious custom actuator inquiry should show how the selected product family moves from feasibility review into repeatable pilot manufacturing.

Step 1

Feasibility

Review CAD, joint load, envelope, thermal boundary, cable path, and custom actuator architecture risk.

Step 2

Prototype

Build the first sample against defined torque-speed, fit, electrical, mechanical, and inspection assumptions.

Step 3

EVT / DVT

Run thermal, backlash, noise, endurance, impact, metrology, and functional checks against the application duty cycle.

Step 4

Pilot

Freeze drawing/BOM revisions, evidence package, outgoing inspection, packaging, spare strategy, and repeat-build controls.

Start a Product-Specific RFQ

This form is prefilled with Custom Humanoid Reducer Architectures. Add CAD envelope, torque-speed target, duty cycle, validation needs, quantity, and schedule so the response can start with DFM questions instead of generic sample pricing.

Contact

Use a business email so engineering and purchasing notes can stay traceable.

Full Name *Business Email *Company *WhatsApp / Phone

Program Scope

These fields route the inquiry by humanoid subsystem, project stage, volume, and logistics.

Product / RequirementProgram Stage / Funding Signal *Robot Platform / Joint Axis *ArchitecturePrototype Quantity / Annual Volume *Target Timeline / Pilot Schedule *Destination Country / Incoterm *NRE / Tooling Expectation

Torque, Motion, and Thermal Targets

TBD values are acceptable, but blank torque and duty-cycle data usually blocks sizing.

Peak Torque / ForceContinuous Torque / Force *Target Speed *Duty Cycle / Thermal Boundary *

Mechanical Interface and Reducer

Package and backlash constraints decide whether an existing platform can be adapted or a new stack is needed.

Mechanical Envelope / Interface *Drawing / CAD Revision *Reduction Ratio / Reducer PreferenceBacklash Limit / Efficiency TargetBacklash Test Condition / Impact Concern

Electrical, Control, and Validation

Include the control boundary and acceptance evidence needed before pilot production.

Voltage / Protocol *Encoder / Brake / Driver NeedsValidation Standard / Test Evidence

Project Summary *

Email directly

Complete 8-point engineering datasets are prioritized for technical receipt within 24 hours, DFM questions within 3 business days, and quote direction within 7 business days after the minimum data is complete; actual timing depends on scope, attachment quality, and engineering availability. If the form is unavailable, contact [email protected] or WhatsApp +8618857971991.

Product Gallery

High precision joint reducer for custom humanoid leg actuator stack

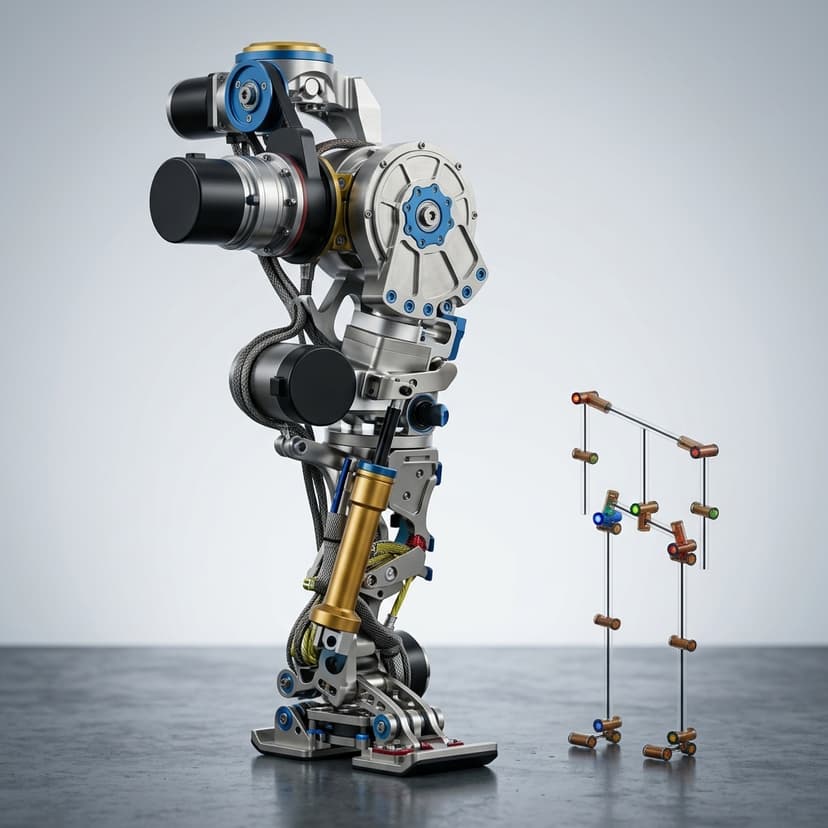

Compact humanoid gearbox reference for reducer architecture selection

Buyer FAQ

Do you recommend harmonic or cycloidal reducers for humanoid joints?

It depends on joint load, backlash target, shock case, efficiency, noise, envelope, and sourcing risk. The RFQ should include those constraints so the reducer path can be selected rationally.

Can reducer selection be separated from the actuator housing?

Only for early comparison. Before prototype release, reducer choice must be reviewed with motor, bearings, output flange, housing stiffness, lubrication, and inspection method.
