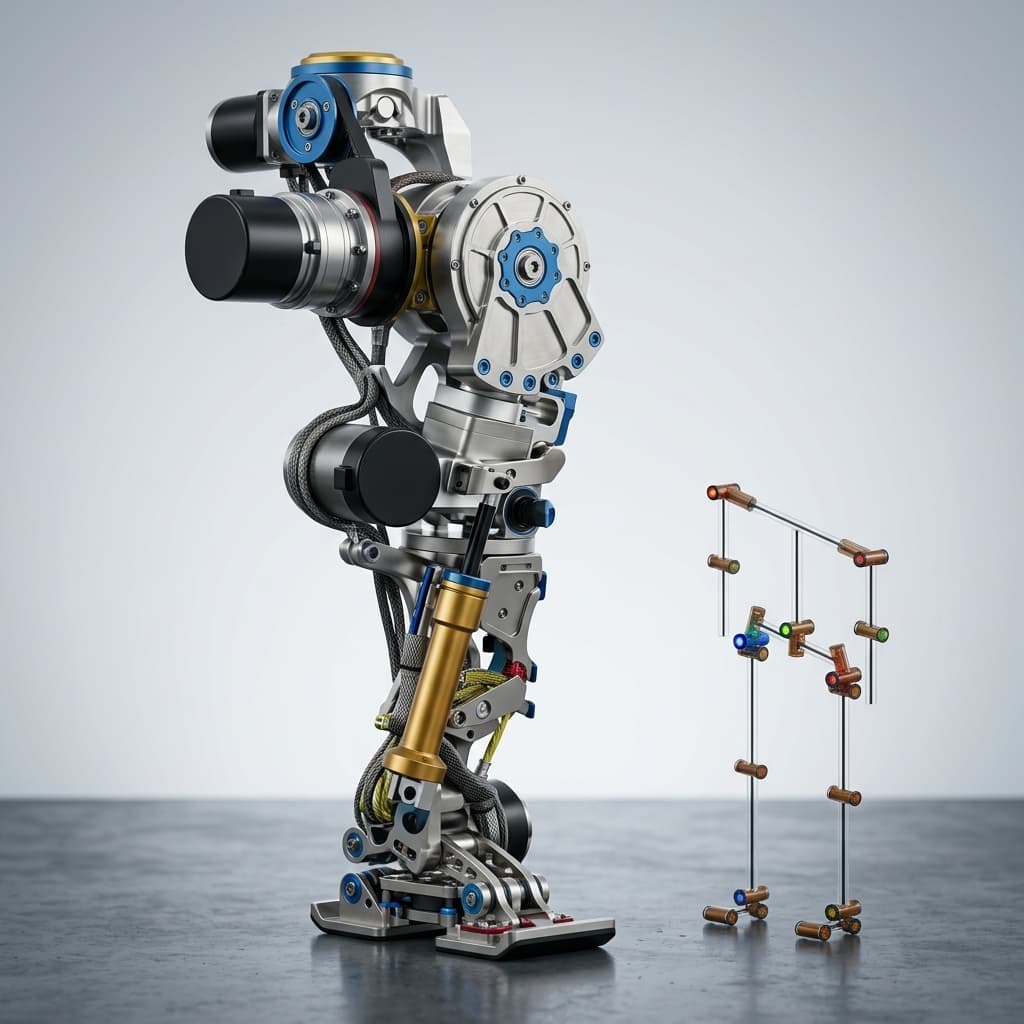

Harmonic vs. Cycloidal Drives in Custom Humanoid Actuators
Compare harmonic and cycloidal drives for humanoid robot joints. Learn how shock tolerance, backlash, and weight impact procurement and engineering decisions.
When engineering a humanoid robot, the choice of gear reduction in the joint actuators dictates more than just torque output. It defines the robot's ability to survive falls, its gait precision, and the overall BOM cost. For procurement and engineering teams sourcing custom humanoid actuators, the debate primarily centers on two architectures: Harmonic Drives (Strain Wave Gearing) and Cycloidal Drives.
Treating these gearboxes as interchangeable is a costly mistake. Bipedal locomotion subjects lower-body joints to severe shock loads that industrial robotic arms never experience, while upper-body joints demand extreme lightweight precision.
This guide provides a practical framework for selecting the right gearbox technology for specific humanoid joints, and what to specify when requesting custom actuator assemblies from an ODM.
For teams still defining the actuator envelope, start with the custom humanoid actuator modules capability page, then use this article as the gearbox-level decision layer before an ODM engineering review.
Scope note (published July 23, 2026): This guide is written for global OEM and R&D teams specifying low-volume to pilot-build humanoid joint actuators. It is a selection framework, not a substitute for supplier life testing. Validate final choices against measured torque-speed curves, duty cycle, impact duration, thermal limits, lubrication, bearing loads, and fall-recovery requirements.
1. The Core Trade-off: Precision vs. Survivability
The fundamental difference between harmonic and cycloidal drives lies in how they transmit torque and handle stress.
Harmonic Drives rely on the elastic deformation of a thin-walled metal cup (the flexspline). Because multiple teeth are engaged simultaneously, they achieve true zero backlash and exceptional precision. However, this thin wall is a structural weak point. A sudden shock load—such as a bipedal robot falling on its knee—can permanently deform or ratchete the flexspline, destroying the gearbox.
Cycloidal Drives use a rigid pin-and-cam-disc mechanism. Torque is transmitted through compression rather than elastic shear. This gives them high structural rigidity and shock tolerance; many suppliers specify transient shock capacity several times above continuous rated torque, but buyers should verify the exact impact duration, cycle count, and post-impact backlash limit. The trade-off is a slight increase in backlash (typically 0.5 to 1.0 arcmin) and a heavier physical envelope.
2. Joint-by-Joint Application Guide
Humanoid robots require a hybrid architecture. Specifying the same actuator type for every joint results in a robot that is either too heavy to walk efficiently or too fragile to survive deployment.
| Joint Category | Primary Requirement | Preferred Gearbox | Engineering Justification | Fall Vulnerability |
|---|---|---|---|---|
| Ankles / Feet | Shock resistance, high continuous torque | Cycloidal | Absorbs heel-strike impacts during dynamic walking. Slight backlash is manageable via force-torque sensors. | Low |
| Knees | Extreme peak torque, impact survival | Cycloidal | Knees bear the brunt of full-body collapse impacts. Harmonic flexsplines often shear under these loads. | Low |
| Hips | Power density, structural rigidity | Cycloidal | Must support the entire upper torso mass dynamically. Radial load capacity is critical. | Low |
| Shoulders | High holding torque, compact envelope | Harmonic | Arms require zero backlash for manipulation tasks. Lower risk of direct ground impact during falls. | High |
| Elbows / Wrists | Lowest possible mass, extreme precision | Harmonic | Weight at the end of the kinematic chain drastically increases inertia. Harmonic drives keep arms light. | High |
| Neck / Pan-Tilt | Smooth low-speed tracking | Harmonic | Requires zero backlash for stable vision systems and LiDAR mapping. | Medium |
3. Applicability Boundaries & Specification Dimensions
Understanding the true operational boundaries of these gearboxes is critical for successful humanoid robot deployment. When selecting a drive, engineers often focus heavily on peak torque and speed, but the applicability boundaries extend far beyond these basic metrics.
If housing, bearing seats, and cable routing are still changing, treat the gearbox choice as part of the drawing-to-production ODM package rather than a catalog component swap.
3.1 Specification Dimensions to Consider
- Torsional Stiffness and Rigidity: Harmonic drives exhibit non-linear torsional stiffness due to the elastic deformation of the flexspline. As torque increases, the stiffness behavior changes, which can complicate the design of precise control algorithms, especially in series-elastic actuators (SEAs). Cycloidal drives provide much higher torsional stiffness, making them more predictable under heavy loads but less forgiving of impact.
- Thermal Dissipation Boundaries: Heat management is one of the most significant specification dimensions. Harmonic drives, with their compact form factor and thin components, can suffer from rapid localized heating under continuous high-duty cycles. Cycloidal drives have more mass to absorb heat, but the multi-pin rolling contact generates considerable friction. Custom actuator housings must be designed with integrated heat sinks or active cooling paths tailored to the specific gearbox architecture.
- Operating Temperature Envelopes: The choice of grease or oil lubrication heavily dictates the cold-start and high-temperature boundaries. In cold environments, the increased viscosity of the lubricant can cause harmonic drives to experience significantly higher starting torque, sometimes exceeding the motor's capability.
- Acoustic Noise and Vibration: Cycloidal drives typically generate more acoustic noise and specific vibration harmonics due to the eccentric cam motion and pin engagement. For humanoid robots designed for domestic or healthcare settings, this acoustic signature can be a boundary constraint, pushing designers toward harmonic drives despite their shock vulnerabilities.
3.2 Dynamic Load Capacity
The true test of a humanoid joint actuator is not static holding torque, but dynamic load capacity during transient events. When a bipedal robot performs a dynamic maneuver, such as jumping or recovering from a trip, the load spike happens in milliseconds. Cycloidal drives excel in this boundary, maintaining structural integrity even when subjected to loads far exceeding their nominal ratings. In contrast, operating a harmonic drive near its peak load boundary repeatedly will accelerate metal fatigue in the flexspline, drastically reducing its operational lifespan.
4. Failure Risks & Mitigation Strategies
Every mechanical component has a failure mode. For procurement and engineering teams, the goal is not to eliminate failure, but to understand the risks and implement mitigation strategies.
4.1 Harmonic Drive Failure Modes
The most critical failure risk for harmonic drives is ratcheting. This occurs when a shock load exceeds the engagement strength of the teeth between the flexspline and the circular spline. The flexspline momentarily buckles inwards, causing the teeth to skip. Even a single ratcheting event can permanently deform the flexspline, leading to erratic friction profiles, lost zero-position calibration, and eventual catastrophic failure.
Mitigation Strategy: Implement mechanical slip clutches or series-elastic elements in series with the harmonic drive. Alternatively, utilize high-bandwidth force-torque sensors and high-frequency motor controllers to detect impending shock loads and actively back-drive the motor to yield, absorbing the energy electrically rather than mechanically.
4.2 Cycloidal Drive Failure Modes
Cycloidal drives are generally immune to catastrophic ratcheting. Their primary failure risks involve lubrication breakdown and localized pitting. Because the torque is transmitted through multiple pins and rollers, inadequate lubrication under high loads leads to metal-on-metal wear. Over time, this wear increases the backlash from an acceptable 0.5 arcmin to 2-3 arcmin or more, degrading the robot's control authority over its limbs.
Mitigation Strategy: Specify exact lubrication protocols with your ODM, including the use of advanced synthetic greases designed for high-pressure rolling contact. Implement preventative maintenance schedules based on joint usage analytics (e.g., total absolute rotations and integrated torque loads) rather than simple time-based intervals.
5. Buyer Decision Points & Supplier Communication Fields
When scaling from a prototype to a low-volume production run of custom humanoid actuators, the conversation with suppliers shifts from "Can you build this?" to "How do we ensure batch consistency?"
5.1 Critical Supplier Communication Fields
To minimize supply chain risks, buyers should demand transparency in several key communication fields:
- Material Traceability: Ensure the ODM provides material certifications for critical components, especially the flexspline steel in harmonic drives or the cam disc alloys in cycloidal drives.
- Batch Testing Protocols: Do not accept sample-based QA for pilot runs. Demand 100% end-of-line testing for torque-ripple, backlash, and efficiency. Require the supplier to provide the raw test data (CSV or similar) mapped to individual actuator serial numbers, and align this with your prototype and pilot production control gates.
- Tolerance Stack-Up Analysis: Custom housings and bearings introduce alignment risks. Request the supplier's tolerance stack-up analysis to verify that the theoretical fits match the manufactured reality, ensuring that the gearbox is not pre-loaded incorrectly due to housing variations.
5.2 Strategic Decision Points
Ultimately, the buyer decision points revolve around the total cost of ownership (TCO). While cycloidal drives may have a slightly higher upfront BOM cost due to manufacturing complexity, their survivability often yields a lower TCO by reducing field failures and RMAs. Conversely, investing in premium, custom-engineered harmonic drives for arms—paired with sophisticated software shock-mitigation—can differentiate a humanoid robot's manipulation capabilities, justifying the higher upfront engineering investment.
6. Procurement & Engineering Checklist for Custom Actuators
When issuing an RFQ to an ODM for custom humanoid actuators, providing peak torque and speed is insufficient. To ensure the factory selects or modifies the correct gearbox, include this checklist in your engineering package:
- Specify the Kinematic Location: Clearly state if the actuator is for a knee, ankle, shoulder, or wrist.
- Define the Shock Load (Impact) Requirement: E.g., "Must survive a 250 Nm transient shock load for 50ms without ratcheting."
- Backlash Tolerance: State the absolute maximum acceptable lost motion (e.g.,
< 0.1 arcminfor arms,< 1.0 arcminfor knees). - Radial and Axial Load Data: Cycloidal drives naturally handle higher external loads; harmonic drives often require heavy custom crossed-roller bearing seats.
- Thermal Limits: High-friction cycloidal drives generate more heat under continuous duty cycles. Specify the maximum allowable housing temperature.
- Integration Envelope: Provide the CAD boundaries. If a hollow shaft is required for cable routing, this drastically changes the gearbox topology.
7. FAQ: Custom Actuator Gearboxes
Q: Can we use dual encoders to compensate for cycloidal backlash?
Yes. A common strategy for lower-body joints is pairing a cycloidal drive with a high-resolution absolute encoder on the output side and an incremental encoder on the motor side. This allows the controller to map and compensate for the 0.5 arcmin of lost motion.
Q: Are harmonic drives always lighter than cycloidal drives?
In standard catalog configurations, yes. However, when ODMs design custom integrated actuators, cycloidal drives can be heavily optimized (e.g., using titanium or specialized alloys) to approach the weight of harmonic systems, though they will never be entirely as light due to the structural mass required for the cam mechanisms.
Q: Why not use planetary gears for humanoid joints?
Planetary gears are highly efficient and cheap, but their backlash (often 3-10 arcmin) is generally unacceptable for bipedal balancing or precise manipulation. They are typically reserved for low-cost quadrupeds or non-critical degrees of freedom.
Q: What is the typical lead time for a fully custom joint actuator featuring these drives?
A: For a completely custom design (including bespoke housing, integrated frameless motor, and dual encoders), expect 12 to 16 weeks for the initial prototype batch. Once the design is locked and tooling is verified, production lead times generally stabilize around 8 to 10 weeks depending on component availability.
8. Moving Forward with Your Custom Design
Selecting between harmonic and cycloidal architectures is just the first step. Integrating the chosen gearbox with a frameless torque motor, dual encoders, a holding brake, and a high-current driver into a single, thermally efficient housing is where standard supply chains fail.
If you are finalizing the joint map for a new bipedal platform, contact our engineering team with your required torque-speed curves and shock load assumptions. We can help you prototype a hybrid architecture that balances arm precision with leg survivability.
